Construction Survey Tools: A Complete Guide to Choosing the Right Equipment

Selecting the right construction survey tools directly affects project accuracy, timelines, and safety on site. However, with technology evolving rapidly, from traditional theodolites to advanced robotic total stations, choosing the right equipment isn’t always straightforward. This guide breaks down the essential tools, their applications, and how to choose equipment suited to your project.

Getting this choice right early saves teams from expensive corrections later, since even small measurement errors can cascade into major structural issues. Therefore, understanding what each tool actually does, rather than just its price tag, matters more than most buyers initially realize. The principle isn’t unique to construction either; teams at Linkinfotech often note that careful, upfront data collection saves similar headaches across research-driven fields.

Why Construction Survey Tools Matter

Every construction project begins with accurate measurements. Without reliable survey data, foundations shift, boundaries blur, and costly rework follows. Therefore, investing in the right construction survey tools protects both budget and timeline from the very first day on site.

Moreover, modern projects demand precision that manual methods simply cannot match. As buildings grow taller and infrastructure projects grow more complex, surveyors need equipment capable of capturing data with millimetre-level accuracy across large, often challenging terrains.

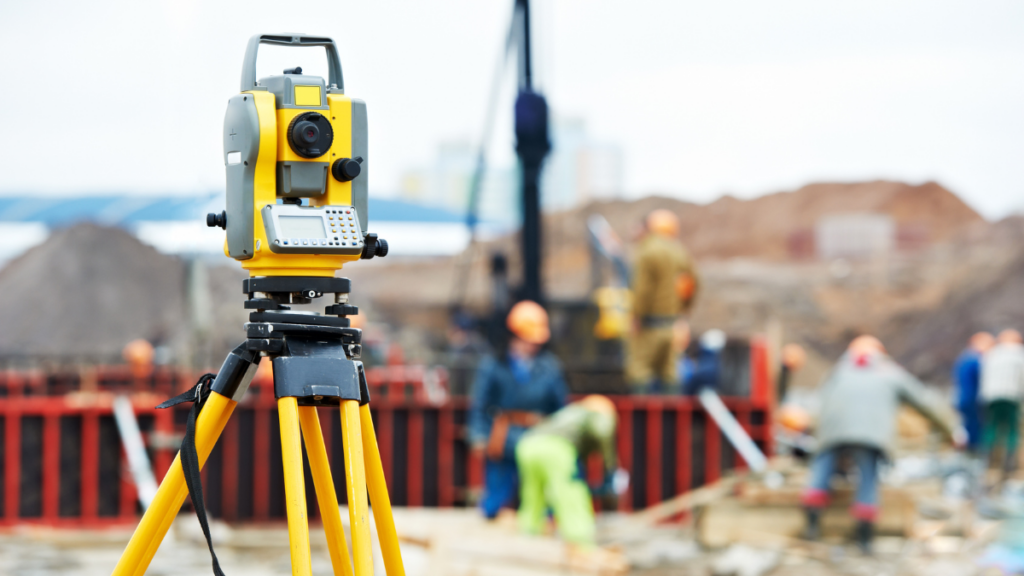

Core Types of Construction Survey Tools

Construction sites rely on a range of instruments, each suited to specific measurement tasks. Understanding these categories helps teams select the right combination for their project scope.

Total Stations

A total station combines an electronic theodolite with distance measurement technology, allowing surveyors to capture both angles and distances in one device. This equipment remains a staple on most construction sites because it delivers high accuracy across large areas quickly.

GPS and GNSS Receivers

Satellite-based positioning systems have transformed how surveyors work across large or remote sites. These receivers pinpoint exact coordinates without requiring line-of-sight between points, which speeds up fieldwork significantly compared to traditional optical instruments.

Laser Levels

Laser levels project a precise horizontal or vertical reference line, helping crews align foundations, walls, and floors accurately. Since they’re lightweight and easy to operate, laser levels remain popular for smaller-scale levelling tasks.

Theodolites

Though older than total stations, theodolites still serve a purpose in measuring horizontal and vertical angles precisely. Many training programs still teach theodolite fundamentals, since understanding manual angle measurement builds a stronger foundation for using automated equipment later.

3D Laser Scanners

For complex sites requiring detailed spatial documentation, 3D scanners capture millions of data points within minutes. This technology has become increasingly common for renovation projects, where existing structures must be mapped precisely before new work begins.

How to Choose the Right Construction Survey Tools

Selecting equipment isn’t just about picking the most advanced option available. Instead, teams should evaluate their specific project needs against several practical factors.

1. Project Scale – Large infrastructure projects typically need GPS and robotic total stations, while smaller sites may only require laser levels.
2. Terrain Complexity – Uneven or obstructed terrain often favours GNSS receivers over traditional line-of-sight instruments.
3. Budget Constraints – Advanced 3D scanners deliver excellent detail but come at a significantly higher cost than basic levelling tools.
4. Team Expertise – Some equipment requires specialized training, so consider your crew’s existing skill set before investing in complex systems.
5. Data Integration Needs – Confirm the equipment exports data in formats compatible with your design and mapping software.

Benefits of Using Modern Construction Survey Tools

Upgrading to modern equipment offers measurable advantages over traditional manual methods. Therefore, many construction firms have shifted their budgets toward digital and robotic survey systems in recent years.

• Faster data collection across large or complex sites
• Higher accuracy, reducing costly rework and disputes
• Real-time data sharing with project management teams
• Reduced need for large survey crews on-site
• Better integration with building information modelling (BIM) systems

Additionally, modern tools often include built-in error-checking features, which catch measurement inconsistencies before they become expensive problems later in construction. Interestingly, this same principle applies broadly across fields, including data collection and survey work in market research, where flagging inconsistencies early also prevents costly downstream errors.

Robotic Total Stations: A Closer Look

Robotic total stations represent one of the most significant advancements in construction surveying technology. Unlike traditional models, these instruments allow a single operator to control the device remotely while standing at the measurement point.

This capability reduces the crew size needed for fieldwork, since an assistant is no longer required to operate the instrument manually. Consequently, projects can complete surveys faster while cutting labour costs associated with traditional two-person survey teams.

However, robotic systems also introduce new considerations. Operators must understand remote control interfaces, and sites with heavy foot traffic may still require an assistant to protect the equipment from accidental disruption or theft.

GNSS and GPS Technology in Construction Surveying

Satellite positioning technology has become indispensable for large-scale construction projects, particularly those spanning wide or difficult terrain. These systems calculate precise coordinates using signals from multiple satellites, eliminating the need for direct visibility between survey points.

Real-Time Kinematic (RTK) Positioning

RTK technology enhances standard GPS accuracy down to centimetre-level precision by using a base station to correct satellite signal errors in real time. This precision makes RTK systems ideal for grading, excavation, and machine control applications.

Static GNSS Surveys

For projects requiring the highest possible accuracy, static GNSS surveys collect data over extended periods at fixed points. While slower than RTK methods, this approach delivers exceptional precision for boundary and control surveys.

Laser Scanning and 3D Modeling Tools

As construction projects grow more complex, many firms have adopted laser scanning technology to capture detailed spatial data quickly. These tools generate point clouds, dense collections of data points representing a site’s exact physical dimensions.

This technology proves particularly valuable for renovation and retrofit projects, where existing conditions must be documented precisely before new designs are finalized. Additionally, point cloud data integrates directly with BIM software, streamlining the design process significantly.

Beyond renovations, laser scanners also support progress monitoring on active construction sites. Regular scans allow project managers to compare actual progress against planned schedules, catching delays or discrepancies early, much like teams tracking what are data analysis tools best suited for spotting trends within any large dataset.

Maintenance and Calibration of Construction Survey Tools

Even the best equipment loses accuracy over time without proper maintenance. Therefore, establishing a regular calibration schedule protects both equipment investment and measurement reliability.

• Schedule professional calibration checks at least annually
• Store instruments in protective cases when not in use
• Clean lenses and sensors regularly to prevent measurement drift
• Train staff on proper handling procedures to avoid accidental damage
• Keep detailed maintenance logs for warranty and compliance purposes

Neglecting maintenance can lead to subtle measurement errors that go unnoticed until costly discrepancies appear during construction. Consequently, routine checks should be treated as a non-negotiable part of equipment management.

Common Mistakes When Selecting Survey Equipment

Even experienced construction teams sometimes make avoidable errors when purchasing or renting survey tools. Recognizing these mistakes early helps prevent budget overruns and project delays.

• Choosing equipment based on price alone without considering project requirements
• Overlooking staff training needs for advanced robotic or GNSS systems
• Ignoring software compatibility between survey tools and design platforms
• Underestimating terrain challenges that affect GPS signal reliability
• Failing to budget for ongoing calibration and maintenance costs

Additionally, some teams rent equipment without verifying recent calibration records, which can introduce accuracy problems from the very start of a project, similar to how skipping proper how we analysis data practices can compromise results in any data-driven field.

Industries That Rely Heavily on Construction Survey Tools

While nearly every construction project uses some form of surveying equipment, certain sectors depend on these tools more intensively due to project scale and precision requirements.

• Civil Engineering – Road, bridge, and infrastructure projects requiring precise elevation and alignment data
• Residential Construction – Foundation layout and boundary verification for housing developments
• Commercial Real Estate – Large-scale site planning and building layout for commercial properties
• Mining and Excavation – Volume calculations and terrain mapping for resource extraction
• Renovation and Retrofit – Detailed as-built documentation using laser scanning technology

Because these sectors face different terrain and precision challenges, equipment needs vary significantly even within the broader construction industry.

Future Trends in Construction Survey Technology

Survey technology continues to evolve rapidly, driven by demand for faster, more accurate data collection. Drone-based photogrammetry, for instance, now allows surveyors to capture large areas from the air, dramatically reducing fieldwork time for expansive sites.

Similarly, artificial intelligence is beginning to enhance data processing, automatically detecting anomalies or inconsistencies within collected survey data. This mirrors broader shifts across research fields, where structured market research survey work increasingly leans on automation to speed up analysis. As these technologies mature, construction teams can expect even greater efficiency gains in the years ahead.

Conclusion

Choosing the right construction survey tools requires balancing project scale, terrain complexity, budget, and team expertise against the capabilities each instrument offers. From traditional theodolites to advanced robotic total stations and GNSS receivers, the right combination of equipment ensures accurate, reliable data throughout every phase of construction. By prioritizing proper maintenance and staff training alongside equipment selection, construction firms can minimize costly errors and keep projects on schedule. Ultimately, investing in the right tools upfront pays dividends through smoother execution and fewer disputes down the line.
